ATOM 310HHYUNDAI MIGHTY 10-ton Full Air
WE ARE ONE! Satisfaction of Faith, ZTON GROUP is one with our customers.
Equipment description
Maximum working height of 31.1M exceeded the limit of 4tons.
It is designed and built to handle any work required in urban areas.
You can work more conveniently by applying an expandable aluminum boarding box.
- Maximum working radius by applying front and rear X-shaped outriggers
- KG 400KG certified load rating, minimizing boom deflection during maximum rear work
- No outrigger torsion and bending during maximum side work(All specifications are outrigger maximum withdrawal conditions)
Key Features ※ The following specifications are subject to change without prior notice for performance improvement.
Automatic hydraulic heating system, winter oil preheating function

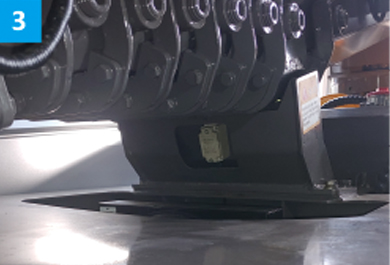

Securing stability by applying boom in/out pull chain method
Boom automatic containment system (Automatic origin return system)

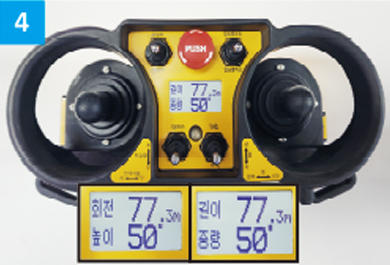

4K LCD Remote Control Application Can work while checking specilications

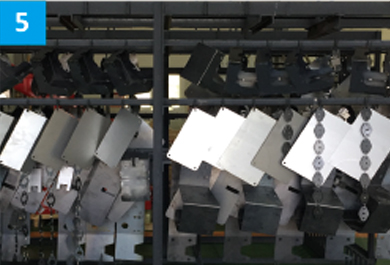

Improved coating quality by introducing electrodeposition coating

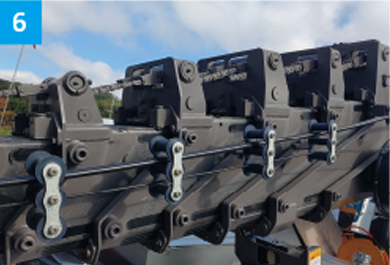

Boom 8-speed linked out
Specification Table ※ The above specifications are subject to change without prior notice for performance improvement.
| Item | Specification | ||
|---|---|---|---|
| model name | ATOM 310H | ||
| Applicable Vehicle | HYUNDAI MIGHTY 10-ton Full Air | ||

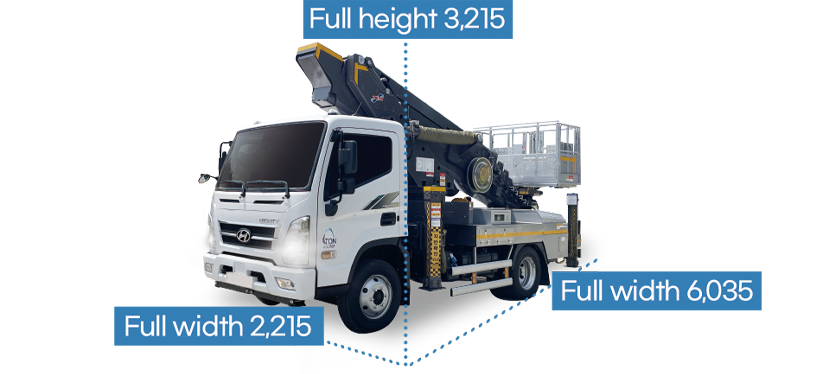

| Body size (L x W x H) | 6,035 x 2,215 x 3,215 (mm) | ||
| Working height | 31.1 m | ||
| Working radius | 23.5 m | ||
| Boom | form | 8-speed hexagonal high tension steel plate boom | |
| Withdrawal Method | Single stage hydraulic cylinder type (chain interlocking drive) | ||
| Boom turn | Driving method | Hydraulic Motor Drive, Worm-Plated Deceleration | |
| Rotation angle | 360º finite rotation | ||
| Bucket | material | aluminum | |
| Size (L x W x H) |
Signboard Type : 960 x 1,850 x 1,105 (Expansion 1,215 x 3,060 x 1,105) Sky Type : 837 x 1,949 x 1,235 (Expansion 1,160 x 3,101 x 1,235) |
||
| Rotation angle | 360° | ||
| Rotation method | Electric Motor Drive, Worm Gear Deceleration | ||
| Horizontal maintenance method | Hydraulic cylinder driven automatic horizontal system | ||
| Load | 400kg | ||
| Outrigger | main | form | Horizontal vertical hydraulic draw-out, X-shaped |
| Extension | 6,950 (mm) | ||
| After room | form | Horizontal vertical hydraulic draw-out, X-shaped | |
| Extension | 6,950 (mm) | ||
| Type of working flow | ISO VG 46 | ||
| safety device |
"Relief valve, counterbalance valve, proportional control valve, Bucket safety angle control valve, pilot check valve, vehicle rollover prevention device" |
||
| Basic specification |
"Wireless Remote Control, Work Light, Hydraulic Emergency Main-Rear Outrigger, PTO, remote start / stop, RPM remote accelerator, Boom Home Positioning. inverter." |
||
Working radius ※ The above specifications are subject to change without prior notice.
Product Specification
Bucket
Signboard Type
Sky Type
